2013-2018 Ram 2500HD 3500HD UConnect 4™ UAG 7" Display Retrofit with Apple CarPlay™ I Android Auto™

Name: 2013-2018 Ram 2500HD 3500HD UConnect 4™ UAG 7" Display Retrofit with Apple CarPlay™ I Android Auto™
Brand: Infotainment.com
Price: 899.95 USD
Availability: InStock

$0.00

What Year is Your Ram

What Size is Your Factory Radio

Do You Need SiriusXM Satellite Radio

Add protection plan Recommended

1 year protection plan Free

2 years protection plan $0.00

Fast Shipping Options

Expert Advice

30-Day Returns

1-Year Warranty

Overview

Our reconditioned factory OEM radios feature a 90-day guarantee and a hassle-free return policy. Extended warranties are also available!

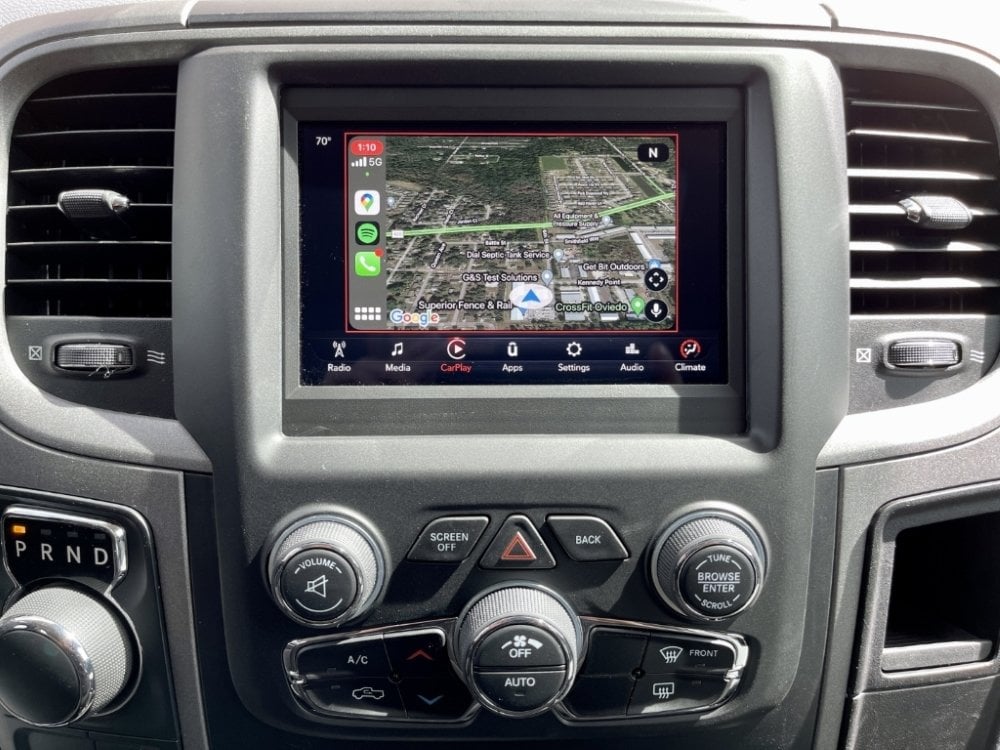

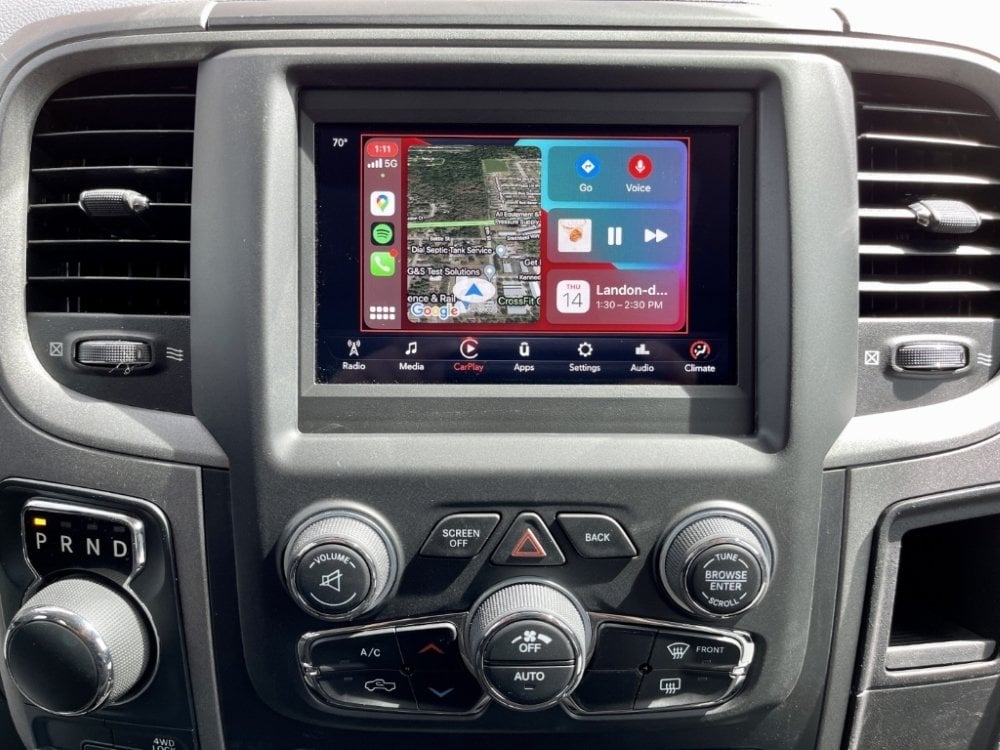

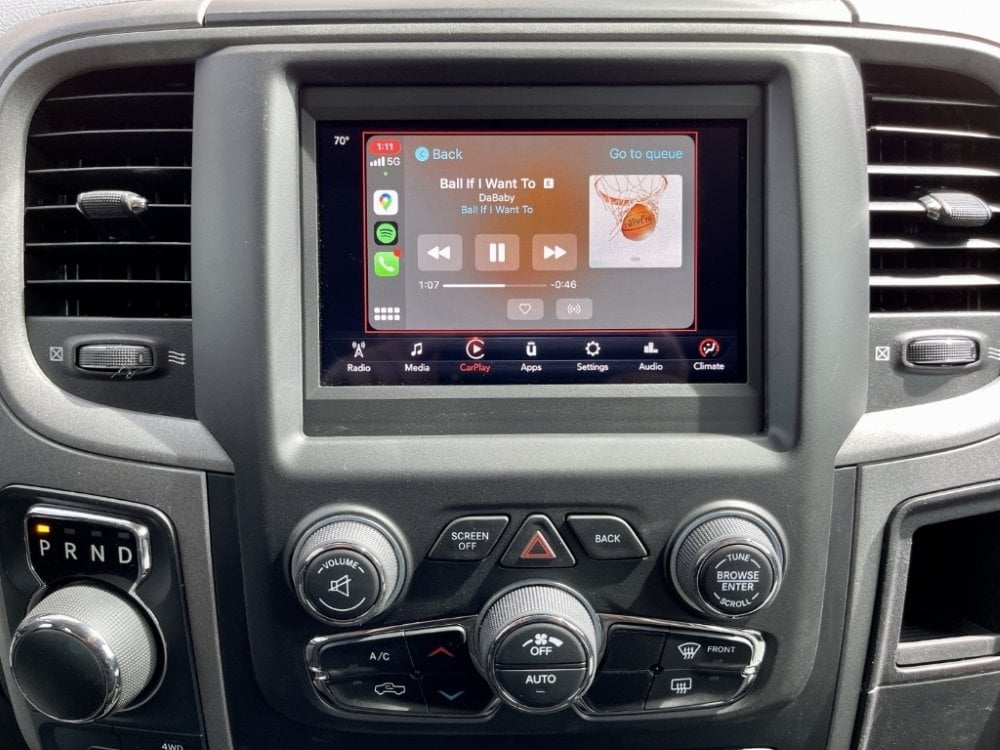

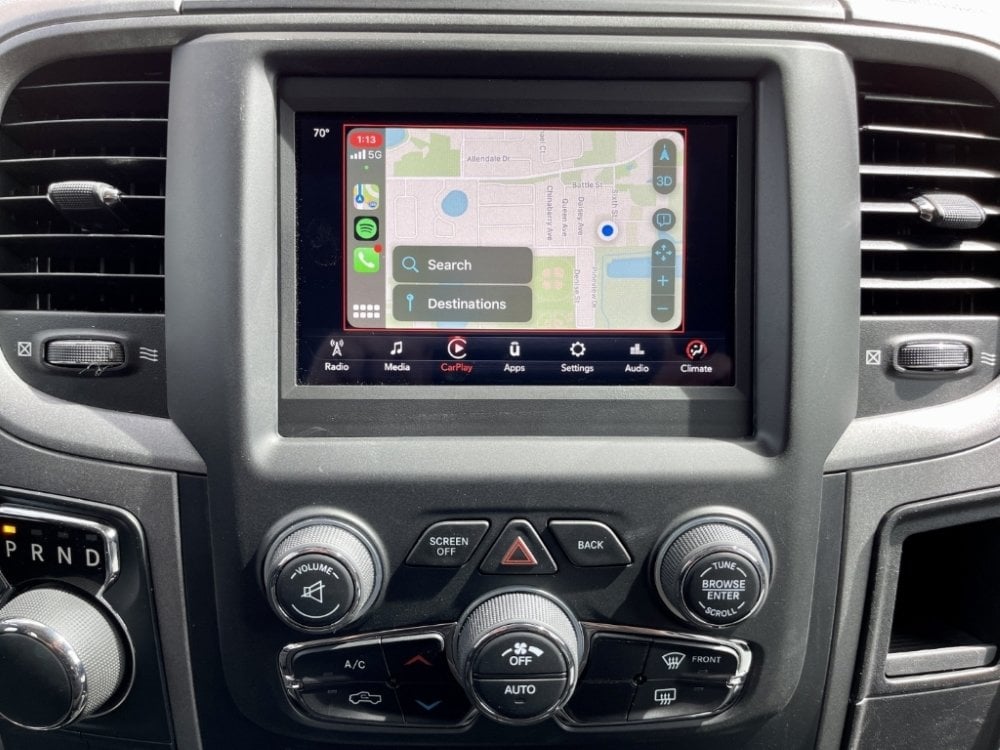

Full Apple CarPlay® and Android Auto® support
Supports English, French, & Spanish languages
No-hassle, Plug & Play system. Pre-programmed to your specific vehicle. Please notate your vehicle's 17-digit VIN after adding to your cart. Eligible for our Compatibility Guarantee.

Manuals and Guides

Install Instructions Product Documents

Product installation

2013-2018 Ram Heavy Duty UConnect 4 UAG 7-inch Display with Apple CarPlay® / Android Auto® a 3 out of 5. 1 being extremely easy and 5 being extremely difficult. It is recommended prior to installing any automotive electronics that the negative battery terminal be disconnected.

Type 1 - In this scenario you have a factory installed 8.4-inch (RA3) or 8.4-inch (RA4) radio in your truck.

Remove the instrument panel that surrounds your factory radio.

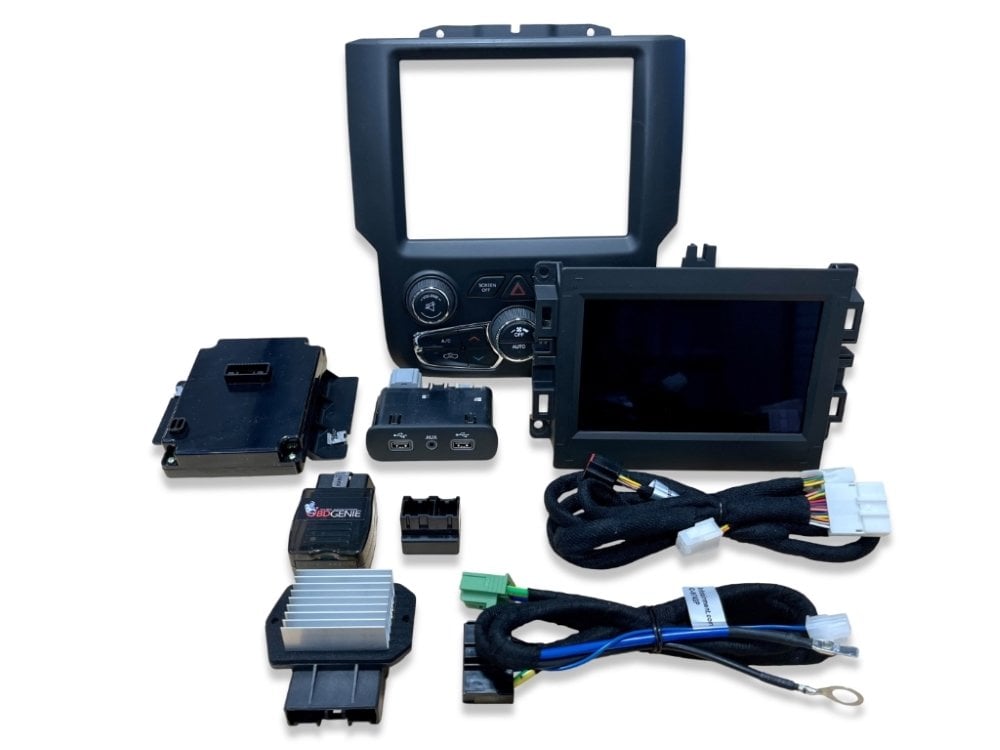

Remove your factory installed 8.4-inch radio and install the included pre-programmed 7-inch UAG radio.
Reassemble the instrument panel to the dash.

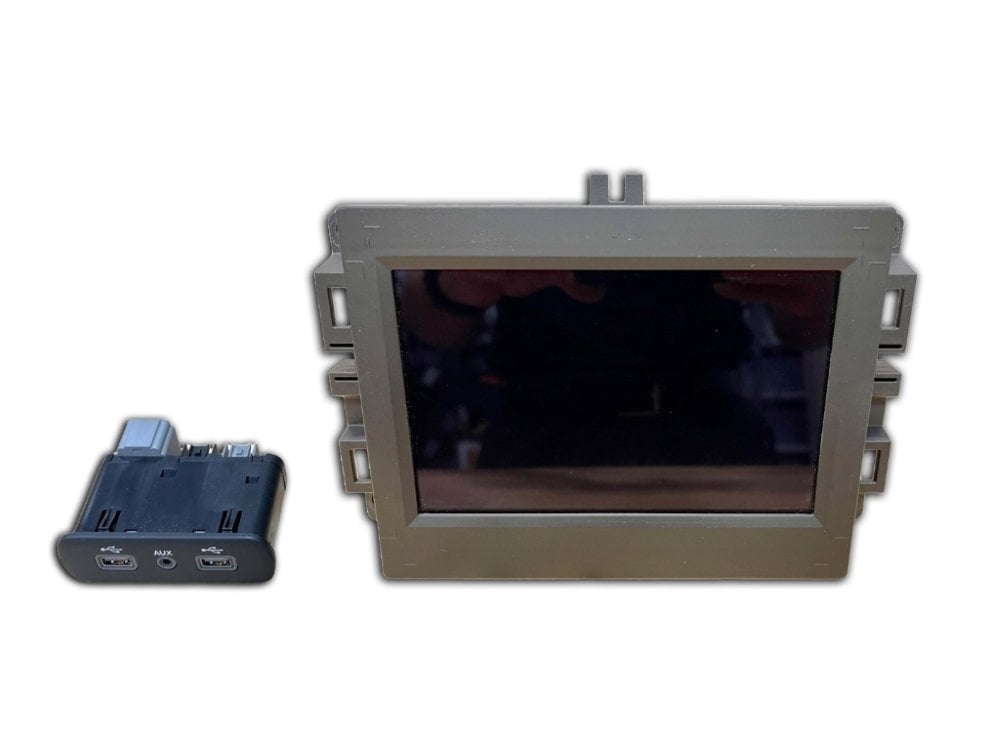

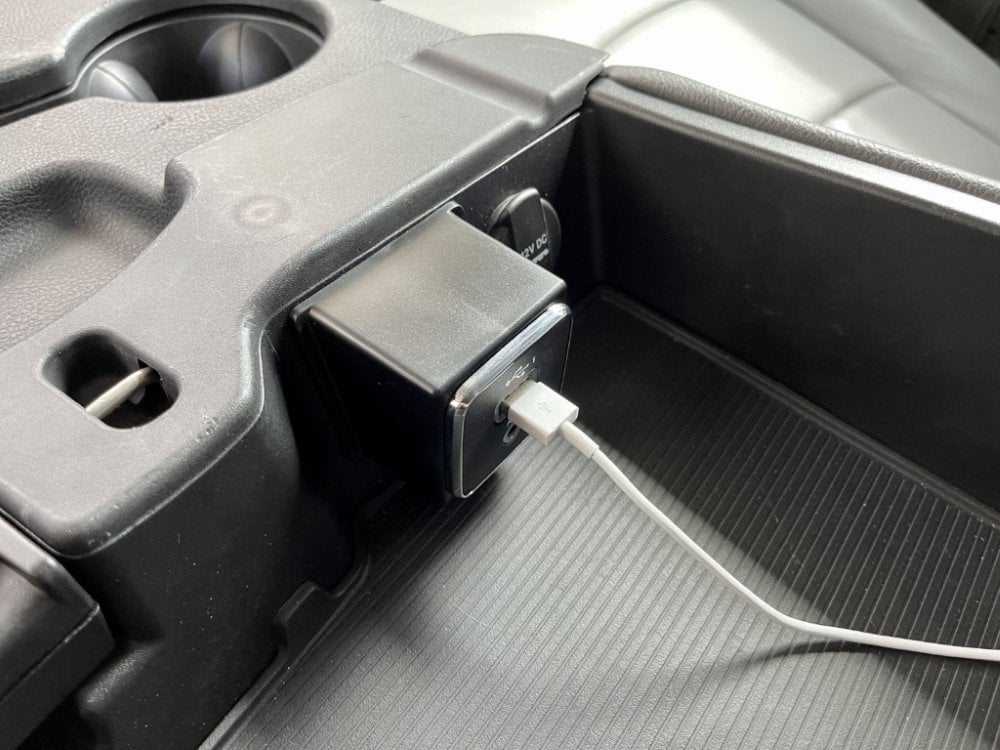

Remove your USB media hub located within your armrest and install the included replacement USB media hub assembly.

Type 2 - In this scenario you have a factory installed base-model 3-inch (RA1) or 5-inch (RA2) radio in your truck.

Remove the instrument panel that surrounds your factory radio.
Remove your factory installed base-model radio and install the included pre-programmed 7-inch UAG radio.
Install the HVAC module to the pre-determined location on the right side of the dash. Route the wiring to the climate control cavity.
Install the resistor into the bottom of the HVAC blower. Connect the harness to the resistor and mate it to the HVAC module wiring.
Remove and replace the factory radio bezel that is attached to the instrument panel. Plug the HVAC module wiring into the new bezel.
Reassemble the instrument panel to the dash.
Remove your USB media hub located within your armrest and install the included replacement USB media hub assembly.
Turn the vehicle to the "ON" position and insert the OBD Genie programmer into the OBD port located under the steering column. When the light illuminates green remove the programmer and stow it away. *If the vehicle is a 2018 or newer, temporarily install the included security gateway module bypass behind the radio cavity prior to using the OBD Genie programmer*

Vehicle Compatibility

Make Model Year

RAM 1500 2013

RAM 2500 2013-2018

RAM 3500 2013-2018

Things to Know

Attention: Please allow up to 48 hours to acclimate to the vehicle fully. Some features may not be available at first. Leaving the vehicle turned off speeds this process!
If your truck is a 2013-2014 and currently features heated seats, ventilated seats, and/or heated steering wheel you will need an extra module to retain those features. See our 4C Retrofit Interface.
Ram Trucks currently equipped with steering wheel mounted audio controls and/or voice recognition & phone buttons will need to use the buttons located on the radio display and instrument panel bezel when upgrading to the UAG Infotainment system.
Customers who are currently subscribed to the paid subscription of UConnect Access® will forfeit this feature by upgrading to the new UConnect 4 system.
Pre-programmed to function with your vehicle's existing back-up rear view camera. If you would like to add a rear view back-up camera check out most popular plug & play TailGate Handle Backup Camera Kit.

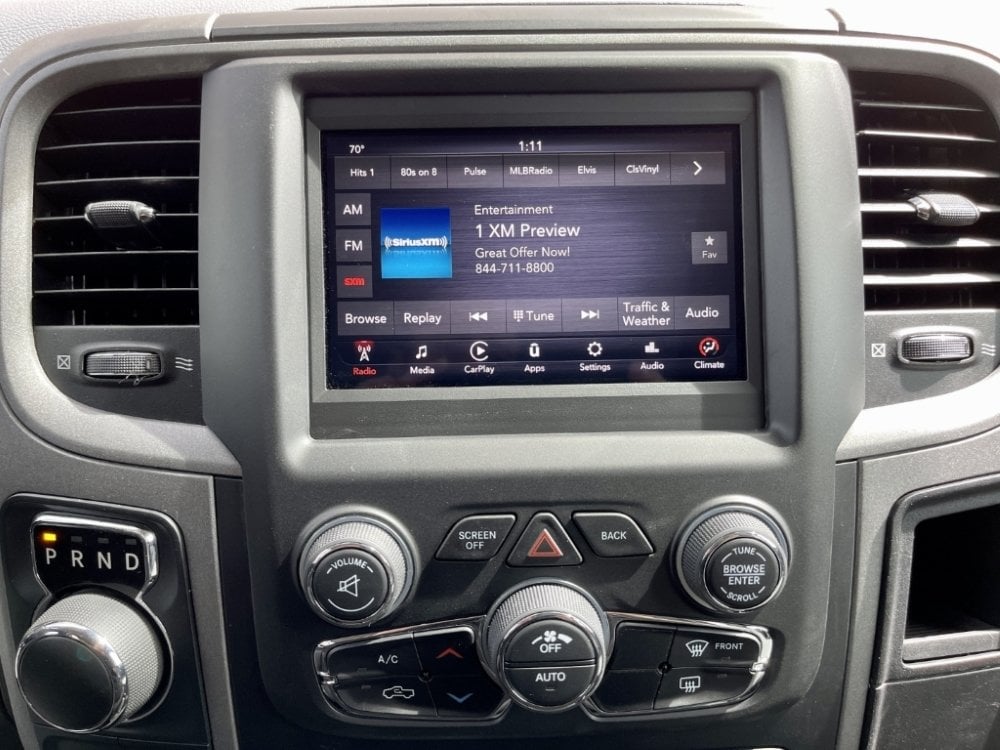

Pre-programmed to function with your vehicle's existing roof-mounted Sirius® satellite radio antenna. If you do not currently use or will ever need SiriusXM be sure to select "SiriusXM is Not Needed" above.
Pre-programmed to function with your vehicle's existing UConnect® bluetooth hands-free calling feature. If you would like to add this incredible safety feature check out our plug & play UConnect Microphone Kit.

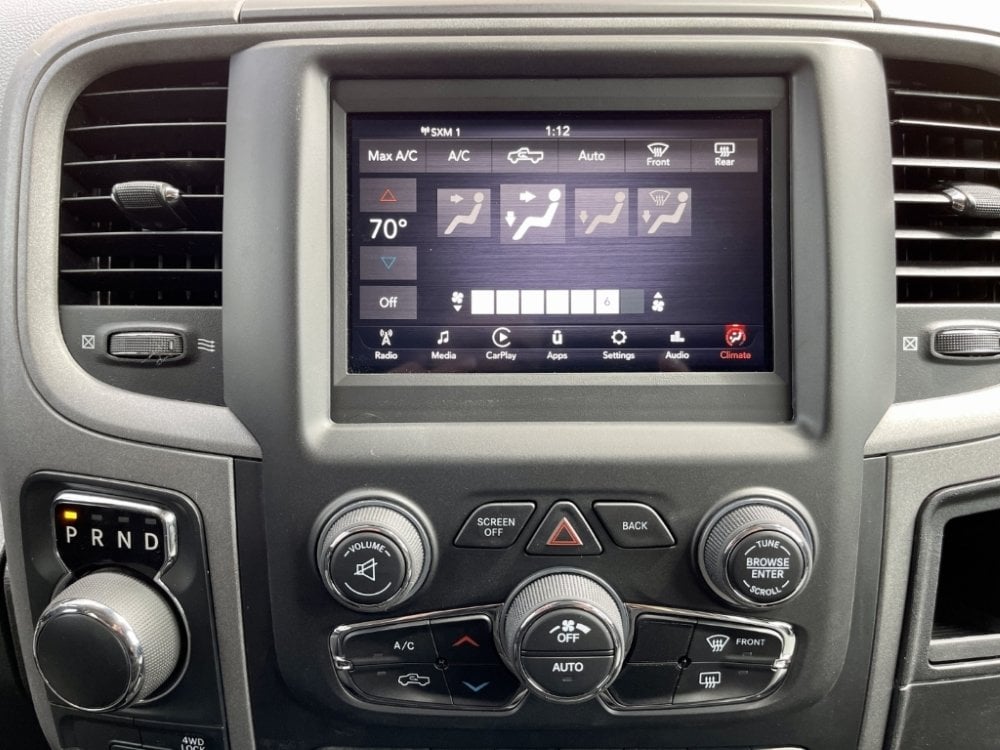

This upgrade is designed for trucks with our without existing automatic climate controls. If you would like to add this convenient feature install our plug & play Auto Climate Control Kit.
