GM Truck and SUV Rear View Mirror Backup Camera Image Reroute Kit

Name: GM Truck and SUV Rear View Mirror Backup Camera Image Reroute Kit
Brand: Infotainment.com
Price: 60.0 USD
Availability: InStock

$0.00

Select Your Configuration

Add protection plan Recommended

1 year protection plan Free

2 years protection plan $0.00

Fast Shipping Options

Expert Advice

30-Day Returns

1-Year Warranty

Overview

Are you installing an aftermarket or factory GM navigation radio in your GM vehicle? Do you have the small backup camera image in your rear-view mirror? Then this kit is for you!

This adaptor will allow you to split the camera image in your rear-view mirror so when in reverse the image appears on your rear-view mirror and your newly installed radio at the same time.

Product installation

Full-Size Pickup Trucks

This adaptor plugs into a connector by your parking brake area and will stub out your factory camera wiring into a male RCA plug that will plug directly into the back of your newly installed aftermarket radio or G-INTVSS interface (which is included with all of our factory navigation radio upgrades).

SUVS

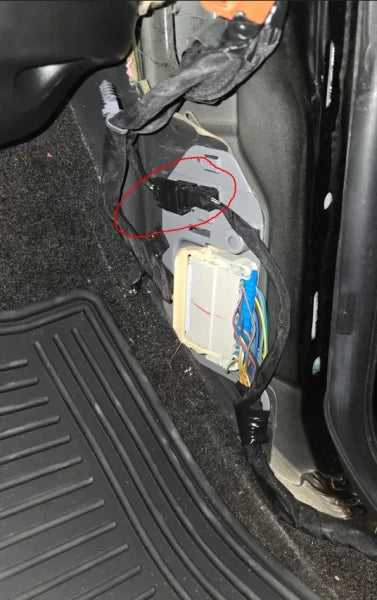

This adaptor plugs into a connector in the passenger side kick panel (As seen in the picture below.) The 4 pin male connector in the kick panel is extremely good at hiding behind other wires. However, if you have the white & blue wires in the mirror plug (pin 6 & 7), that connector will be there. You will unplug the two connectors, plug in the adapter harness, and route the adapter's video cable over to your newly installed aftermarket radio or G-INTVSS interface (which is included with all of our factory navigation radio upgrades).

Vehicle Compatibility

Make Model Year

Buick Enclave 2007-2014

Chevrolet Avalanche 2007-2013

Chevrolet Silverado 1500 2007-2013

Chevrolet Silverado 2500 2007-2014

Chevrolet Silverado 3500 2007-2014

Chevrolet Suburban 2007-2014

Chevrolet Tahoe 2007-2014

GMC Acadia 2007-2011

GMC Acadia 2013-2014

GMC Sierra 1500 2007-2013

GMC Sierra 2500 2007-2014

GMC Sierra 3500 2007-2014

GMC Yukon 2007-2014

Chevrolet Traverse 2009-2014

Things to Know

Q: Will this kit work with factory touchscreen radios?
A: Yes. This kit is compatible with factory touchscreen radio systems.

Q: Will this kit work with aftermarket touchscreen radios?
A: Yes. This kit is compatible with most aftermarket touchscreen radios.

Q: Do I need the G-INTVSS interface when installing an aftermarket radio?
A: Typically, no. Most aftermarket radios include a dedicated rear camera RCA input, eliminating the need for the G-INTVSS interface.

Q: Where will the backup camera image be displayed after installation?
A: This kit is designed to display the backup camera image on both the rearview mirror and the radio screen simultaneously.

Q: Will I lose my factory rearview mirror camera display?
A: No. This kit retains the factory backup camera image in the rearview mirror while also displaying it on the radio screen.

Q: Why does the camera display on both screens?
A: Based on customer feedback, this kit was specifically designed to retain the factory mirror display while adding camera functionality to the radio screen for improved visibility and convenience.
