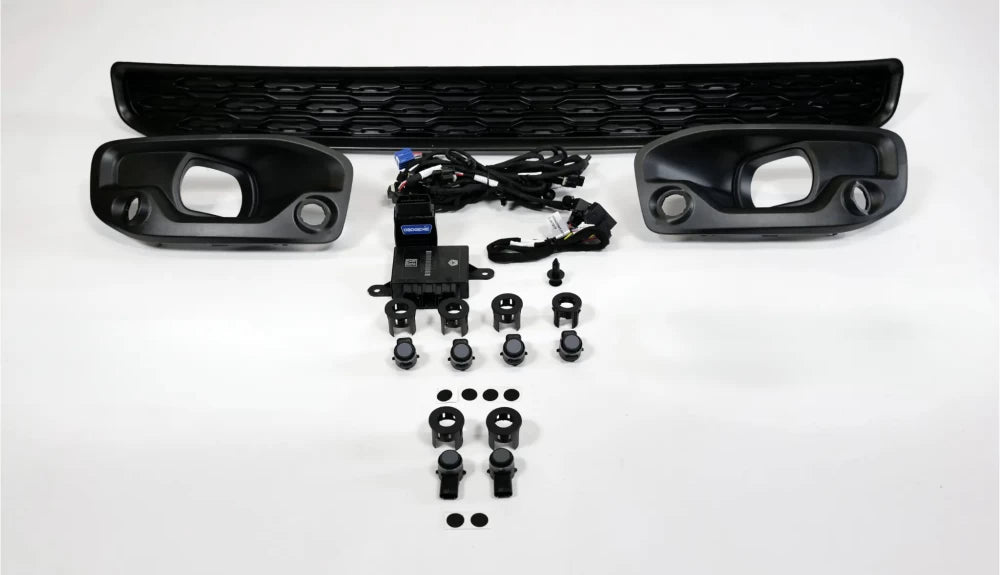

Ram HD Factory OEM ParkSense Front Park Assist halogen fog light bezels

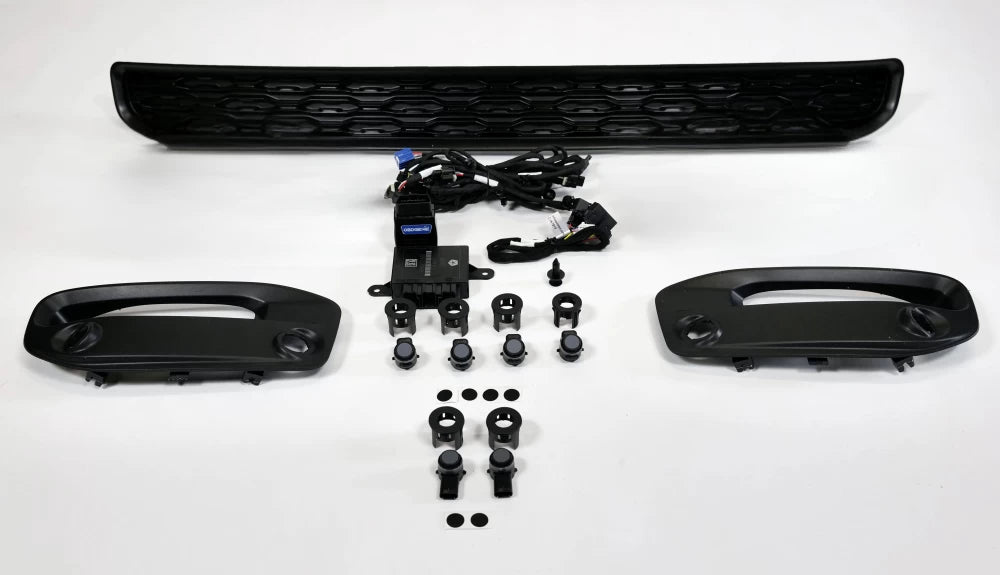

Ram HD Factory OEM ParkSense Front Park Assist LED fog light bezels

Low Stock

2019-2024 Ram 2500 3500 HD Factory OEM ParkSense Front Park Assist

Name: 2019-2024 Ram 2500 3500 HD Factory OEM ParkSense Front Park Assist
Brand: Infotainment.com
Price: 799.95 USD
Availability: InStock

$0.00

Select Your Current Fog Lights

Add protection plan Recommended

1 year protection plan Free

2 years protection plan $0.00

Fast Shipping Options

Expert Advice

30-Day Returns

1-Year Warranty

Overview

Experience Enhanced Safety and Effortless Parking with an OEM ParkSense Front Park Assist for Your Ram Heavy Duty

Important: Your truck MUST currently be equipped with Rear Park Assist as well, for this upgrade to function. CLICK HERE to also add Rear Park Assist.

The ParkSense system detects objects located in front the vehicle within defined coverage zones. When an object is detected, the system provides an alert to the customer based on the selected customer configuration and the object's location and distance relative to the vehicle. The system assists the driver during parking by sensing obstacles situated outside the driver's field of view.

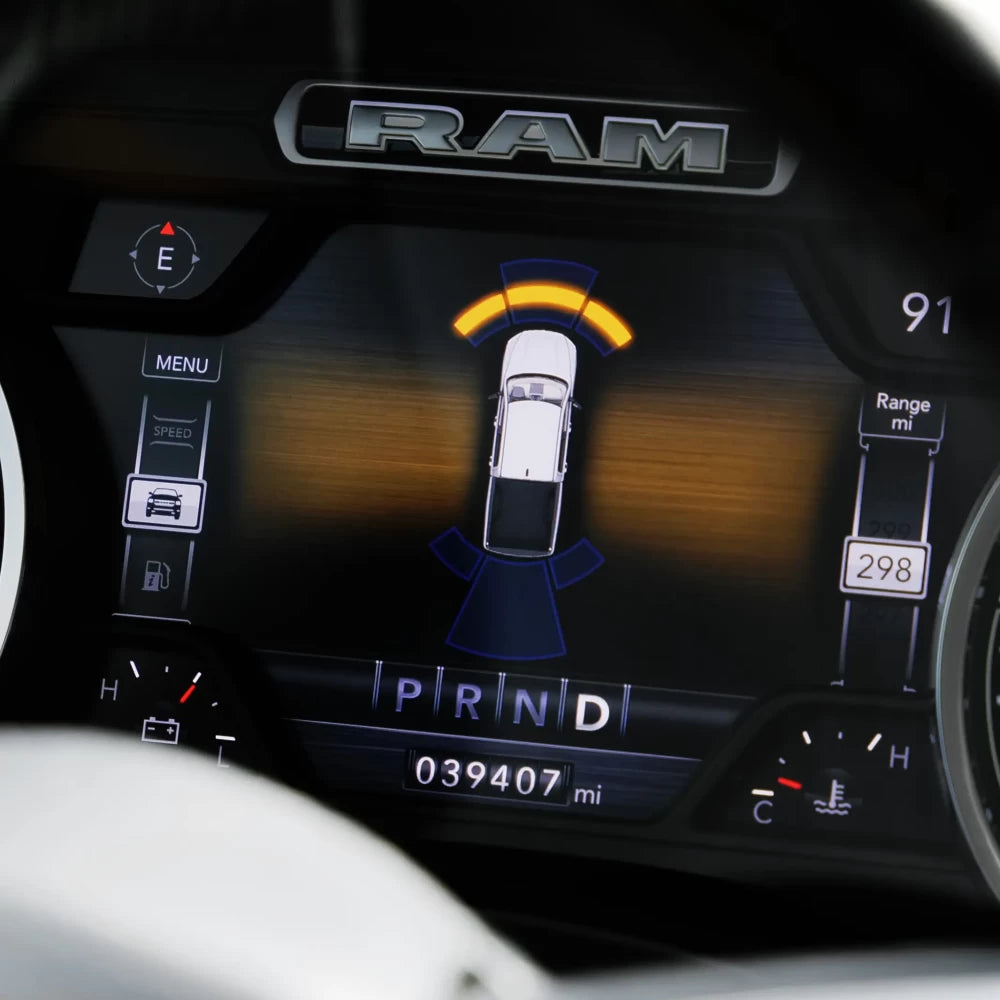

The information regarding the presence and distance of an obstacle is transmitted to the driver in the form of an audible alert and graphic display on the instrument cluster. The audible alert is pulsed at a rate dependent on distance to the obstacle.

This highly sought-after safety upgrade is 100% fully plug & play and will operate like it would be from the factory which means the settings can be controlled from the factory radio display.

Adding OEM ParkSense Front Park Assist to your Ram's never been easier.

Our kit includes the security gateway module bypass and the OBD Genie C-XAG-HD programmer which will enable the "XAG : ParkSense Front & Rear Park Assist" option code within the Ram's body control module. Dealer programming is not required!

If you need Rear Park Assist as well, CLICK HERE.

Note - For best results, run the OBDGenie in the Accessory position (do not start the engine), then turn the vehicle off before completing the full installation. Do not start the engine until all components are fully connected. We also recommend testing the system in the dash first to confirm it works without error messages before running and securing the final wiring and sensors.

Product installation

Installation of this product would be rated a 4 out of 5. 1 being extremely easy and 5 being extremely difficult. It is recommended prior to installing any automotive electronics that the negative battery terminal be disconnected.

Vehicle Compatibility

Make Model Year

RAM 2500 2019-2024

RAM 3500 2019-2024

Things to Know

Q: What is the correct installation process for the Park Assist kit?
A: Before installation, put your vehicle in accessory mode, run the OBD Genie, turn the vehicle off, and then proceed with the full installation. This helps prevent the ParkTronics module from registering Diagnostic Trouble Codes (DTCs) and ensures proper functionality without additional clearing tools.

Q: Can I adjust the Park Assist chime volume?
A: Yes. The Park Assist chime volume can be adjusted through the factory radio settings menu and can be set to Low, Medium, or High.

Q: When is ParkSense active?
A: ParkSense is active when the gear selector is in Reverse or Drive. It will remain active until vehicle speed reaches approximately 7 mph (11 km/h), at which point it temporarily deactivates and will reactivate when speed drops below approximately 6 mph (9 km/h).

Q: Does ParkSense stay active while driving at higher speeds?
A: No. The system automatically deactivates above approximately 7 mph and reactivates when the vehicle slows down below the threshold.

Q: Can I install only the front ParkSense kit?
A: No. The Front ParkSense kit does not include the main module power harness, which is required for proper operation and is included with the rear kit. Installing front-only may cause error messages when shifting into reverse, so the front kit should not be purchased without the Rear Assist ParkSense.

Q: What happens if my vehicle already has factory rear ParkSense?
A: The factory ParkSense module will no longer be used. The system will operate entirely through the combined front and rear ParkSense module included in this kit.
