What is a Body Control Module (BCM)?
| September 2023

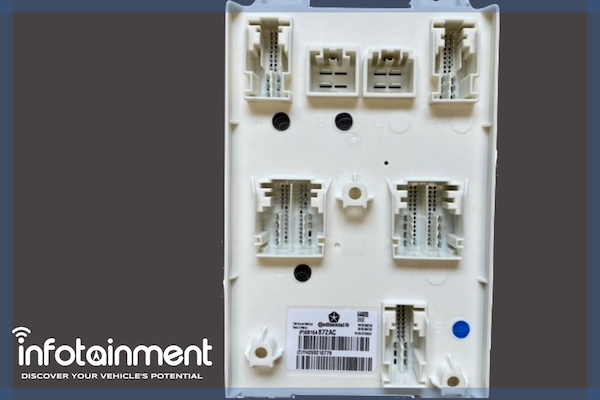

A body control module (BCM) is an electronic control unit (ECU) that is responsible for monitoring and controlling various electronic accessories in a vehicle’s body. It is a critical component of the car’s electrical system and is responsible for ensuring that the various electronic accessories in the car function properly and safely.
The BCM typically controls the following functions:
- Power windows
- Power mirrors
- Air conditioning
- Immobilizer system
- Central locking
- Door locks
- Headlights
- Turn signals
- Wiper system
- Horn
- Seatbelt warning system
- Theft alarm
- Cruise control
- Tilt and telescopic steering wheel
- Heated seats
- Sunroof
The BCM communicates with other on-board computers via the car’s vehicle bus, and its main application is controlling load drivers – actuating relays that in turn perform actions in the vehicle such as locking the doors, flashing the turn signals (in older cars), or dimming the interior lighting.
How does a Body Control Module work?
The BCM works by receiving input signals from various sensors in the car, such as the door switch, the temperature sensor, and the light sensor. It then uses these input signals to determine the appropriate output signals to send to the various actuators, such as the power window motor, the air conditioning compressor, and the turn signal relay.
The BCM is a complex and sophisticated piece of electronics. It is programmed with a set of instructions that tell it how to control the various electronic accessories in the car. The BCM is also constantly monitoring the input signals from the sensors to ensure that the various accessories are operating properly.
What are the symptoms of a bad Body Control Module?
If the BCM fails, it can cause a variety of problems, such as:
- The doors may not lock or unlock properly.
- The windows may not roll up or down.
- The air conditioning may not work.
- The lights may not turn on or off properly.
- The turn signals may not work.
- The horn may not work.
- The theft alarm may not work.
If you experience any of these problems, it is important to have the BCM checked by a qualified technician.
How to diagnose a bad Body Control Module?
A qualified technician can diagnose a bad BCM by using a diagnostic tool to connect to the car’s computer system. The diagnostic tool can read the error codes stored in the BCM and help the technician to determine if the BCM is the source of the problem.
How to fix a bad Body Control Module?
If the BCM is found to be faulty, it will need to be replaced. The BCM is a relatively expensive component, so it is important to get a second opinion before having it replaced.
How to prevent a Body Control Module from failing?
There are a few things you can do to help prevent your BCM from failing:
- Have the BCM regularly serviced by a qualified technician.
- Avoid electrical interference from other devices, such as cell phones or power tools.
- Do not disconnect the battery while the car is running.
- If the BCM does fail, have it replaced as soon as possible.
By following these tips, you can help to keep your BCM in good working condition and extend its lifespan.
Ram Truck Body Control Module
We’ve seen many of our users come in and ask for a new body control module for Ram trucks. We offer OEM products for upgrades.
What Does a Body Control Module Do?
A body control module acts as the central nervous system for a vehicle’s non‑powertrain electronics. While the engine control unit manages fuel injection and ignition, the BCM coordinates comfort and convenience features. It receives inputs from door switches, temperature sensors, light sensors, seatbelt buckles and steering wheel controls. It then sends commands to actuators that operate power windows, mirrors, door locks, wipers, climate controls, interior lighting and alarms. This orchestration ensures that each accessory functions only when appropriate—for example, disabling window switches when a child safety lock is engaged or activating interior lighting when a door is opened.
Communication Networks
Modern vehicles use multiplexing networks such as CAN bus or LIN bus to let the BCM talk to other control modules. By sharing a single communication line rather than multiple point‑to‑point wires, the BCM reduces weight and improves reliability. When you press a window switch, the BCM interprets the signal and commands the window motor via the same network that handles headlight or lock functions. This integration allows programmable functions like delayed courtesy lighting and keyless entry timers.
Signs of BCM Failure
A failing body control module can manifest in several ways. The most obvious is erratic behavior: door locks cycling on their own, headlights flickering or the horn sounding intermittently. Power accessories may stop working altogether, or warning lights may illuminate without a clear cause. Cruise control that disengages unexpectedly or remote key fobs that fail to unlock doors are also indicators. Because the BCM monitors many systems, its failure can mimic multiple unrelated issues.
Common symptoms include:
- Windows, locks or mirrors that stop responding to switches
- Intermittent or non‑functional interior or exterior lighting
- Malfunctioning wipers, horn or seat heaters
- Central locking that cycles continuously
- Fault codes stored in multiple unrelated systems
Diagnosing a Faulty BCM
Professional diagnostics are essential to confirm a BCM issue. A technician connects a scan tool to the vehicle’s diagnostic port to read error codes from all modules. A faulty BCM often stores codes related to communication errors or corrupted memory. Technicians also perform component tests by sending commands through the BCM and monitoring responses. Because wiring and connectors can mimic module failure, electrical continuity and voltage checks on related circuits are necessary. In some cases, a software reflash can restore functionality if corruption has occurred, but hardware failure requires replacement.
Repair or Replace?
If the BCM has failed, replacement is often the most reliable solution. New modules must be programmed to match the vehicle’s VIN and options list. In many late‑model vehicles, this programming requires dealer‑level tools. Some remanufactured BCMs come pre‑programmed, but always confirm they support your trim and feature set. Because BCMs are expensive, it’s wise to seek a second opinion before replacing one. Occasionally, water ingress into the cabin wiring harness or a faulty ground can cause symptoms that appear to be a BCM failure. Correcting these issues may restore normal operation without replacing the module.
Preventing BCM Problems
To prolong the life of your body control module, avoid practices that cause voltage spikes. Never disconnect the battery while the engine is running, and use the correct procedure when changing batteries to prevent surge damage. Keep wiring harnesses dry and protected; water leaking from a sunroof or windshield often causes BCM corrosion. When adding aftermarket electronics, such as stereos or alarm systems, use CAN‑bus compatible interfaces and avoid tapping directly into BCM circuits. Regularly servicing your vehicle and ensuring grounds and fuses are clean helps prevent intermittent faults.
FAQs
Is a BCM the same as an ECU?
No. An ECU typically controls engine or transmission functions, while a BCM manages body electronics like locks, lights and windows.
Can a BCM be repaired?
In some cases, BCMs can be reflowed or have components replaced by specialized electronics repair services. However, most failures are resolved by replacement due to the complexity of the circuitry.
Will a faulty BCM drain my battery?
Yes. A malfunctioning BCM may leave circuits energized when the vehicle is off, leading to parasitic draw.
Do I need to program a new BCM?
Yes. Most modern BCMs require coding to match your vehicle’s configuration. Without programming, many functions will not work correctly.
Conclusion
Understanding the role of the body control module helps you troubleshoot electrical gremlins and make informed repair decisions. By paying attention to early warning signs and maintaining your vehicle’s electrical system, you can avoid sudden failures. For a deeper dive into how your vehicle’s networked computers interact, check out our vehicle computer systems guide. For a deeper dive into how your vehicle’s networked computers interact, check out our vehicle computer systems guide.
